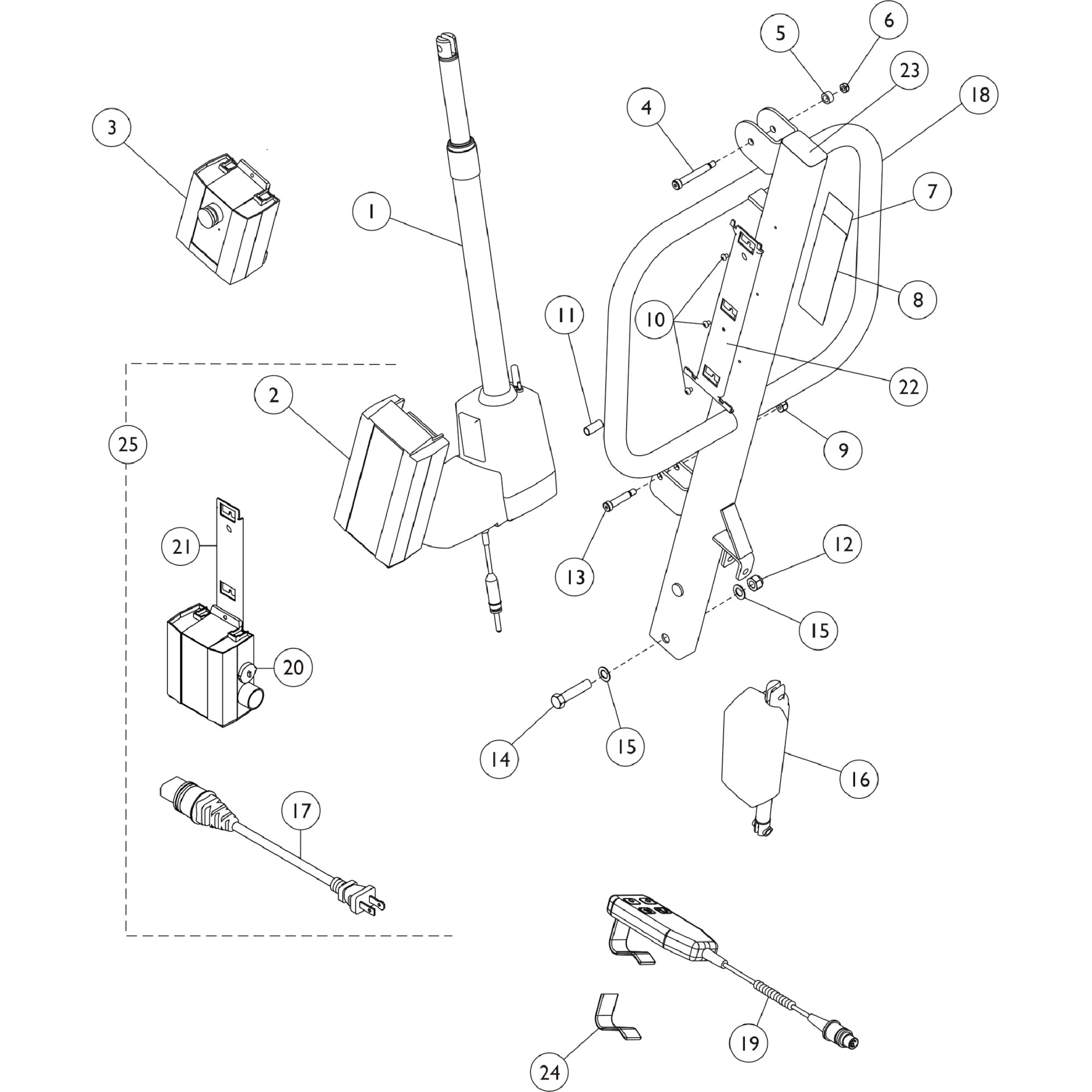

RPL450-2 Mast Assembly
#1Reliant Lift Up-Down Actuator#2Linak Patient Lift Battery Box#3Reliant Control Box, Power Lift & Legs#4Reliant Screw, Boom/Mast#5Reliant Hardware, Spacer#6Invacare Locknut (5/16-18)#9Invacare Locknut (5/16-18)#10Screw, Phillips Pan Head#11Reliant Mast Bushing#12Locknut (1/2-13)#13Screw, Socket Head Shoulder#14Reliant Hardware Screw, Hex Head#15Reliant Base Washer#16Reliant Power Leg Actuator#17Reliant Lift Charger Cord#18Reliant Mast Assembly#19Reliant 4-Button Handset#20Linak Patient Lift Charger#21Bracket, Wall Mount Charger#22Reliant Battery/Control Box Bracket#23End Cap, Reliant Lift#25Reliant Lift Charger Kit

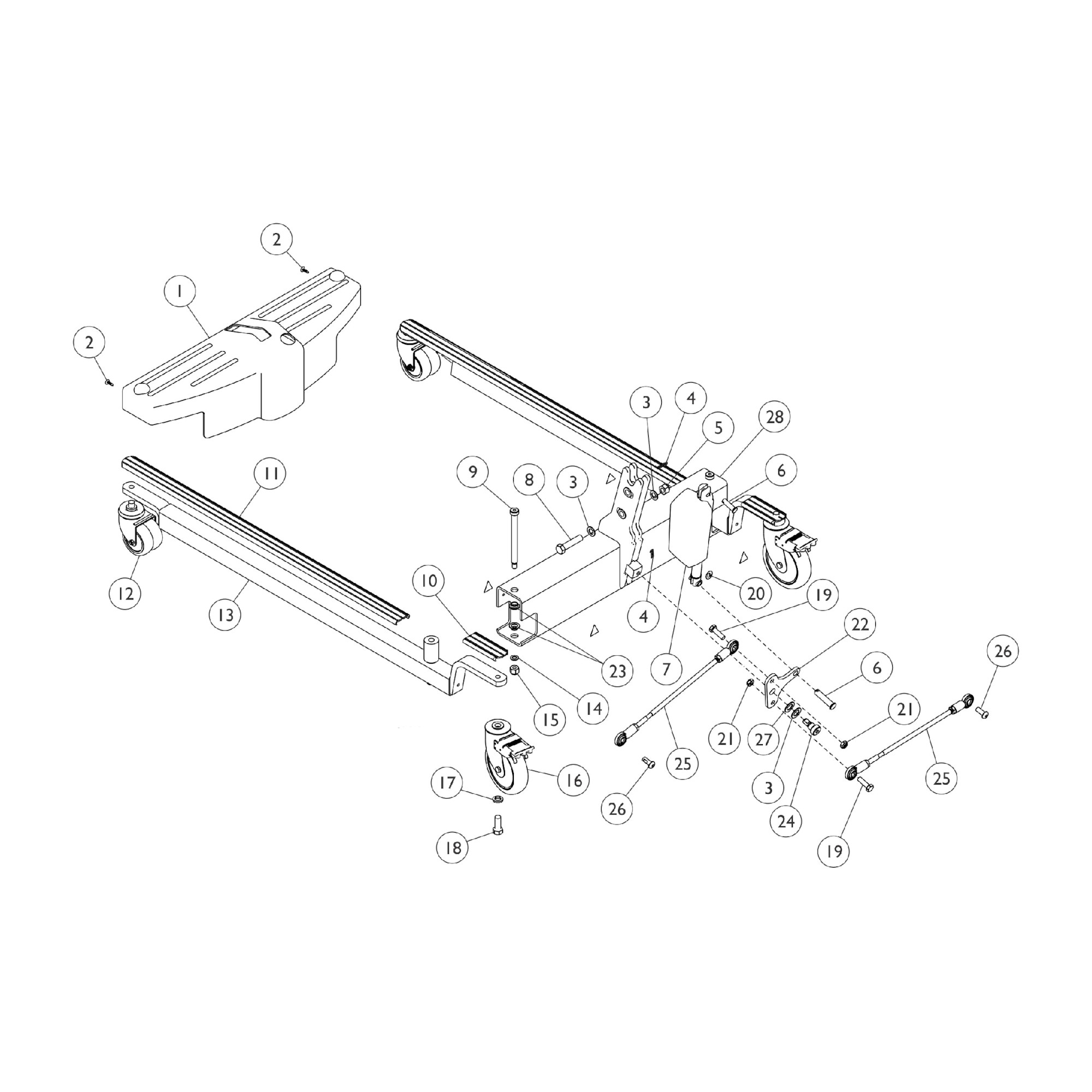

RPL450-2 Power Base Assembly
#1Reliant Power Base Shroud#2Reliant Base Shroud Clip#3Reliant Base Washer#5Locknut (1/2-13)#7Reliant Power Leg Actuator#8Reliant Hardware Screw, Hex Head#9Reliant Base, Socket Screw 5″#10Reliant Rear Leg Cover#11Reliant Front Leg Cover#123″ Dual Reliant Caster#14Washer, Flat#15Locknut, 3/8-16#165″ Locking Rear Caster#17Lock Washer, 1/2″#18Reliant Screw, Hex Head#19Reliant Hex Head Screw, 5/16-18″ x 1″#21Invacare Locknut (5/16-18)#23Flanged Pivot Bushing#24Screw, Shoulder Hex Socket Head#25Reliant Tie Rod#26Reliant Screw, Socket Button Head#27Reliant Washer, Nylon#28Reliant Cross Support (After 7/1/10)

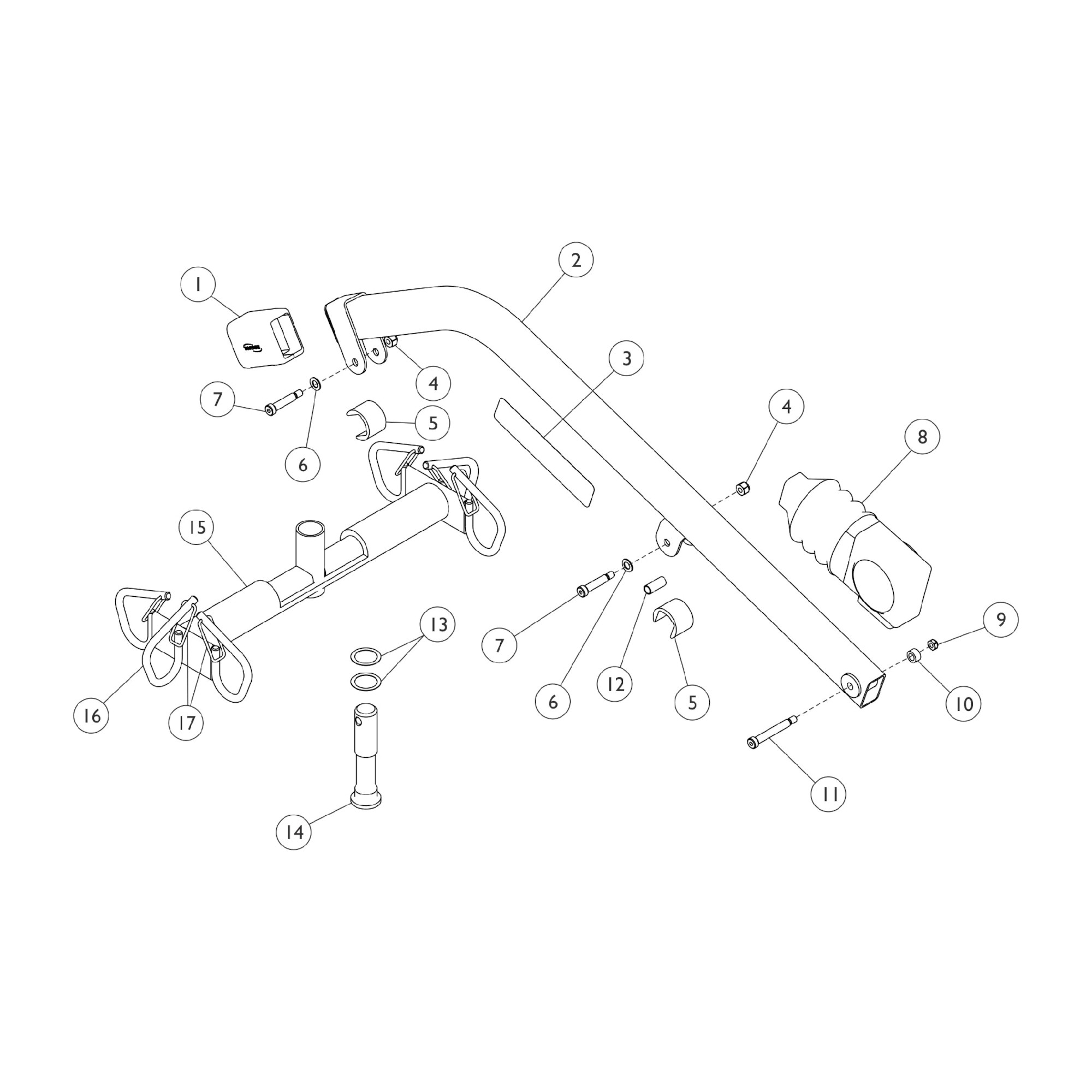

RPL450-2 Boom Assembly
#1Reliant Bumper Pad#2Reliant Lift Boom Arm#4Invacare Locknut (5/16-18)#5Reliant Finger Guard#6Washer, Flat#7Screw, Socket Head Shoulder#8Boot, Black Rubber#9Invacare Locknut (5/16-18)#10Reliant Hardware, Spacer#11Reliant Screw, Boom/Mast#12Reliant Mast Bushing#13Reliant Hanger Pin Nylon Washer#14Spreader Bar Hanger Pin#15Reliant Hanger Bar Pad#16Reliant Hanger Bar, 6-Point#17Spreader Bar Clips
